The DXH4 Remote Workstation Card is a unique, compact, low-profile solution that provides remote access to your workstation. At the desktop, a secure stateless PCoIP zero client decodes the data sent from the DXH4 over a standard Ethernet connection. Designed for remote and agile working where pixel perfect video is required across multiple monitors.

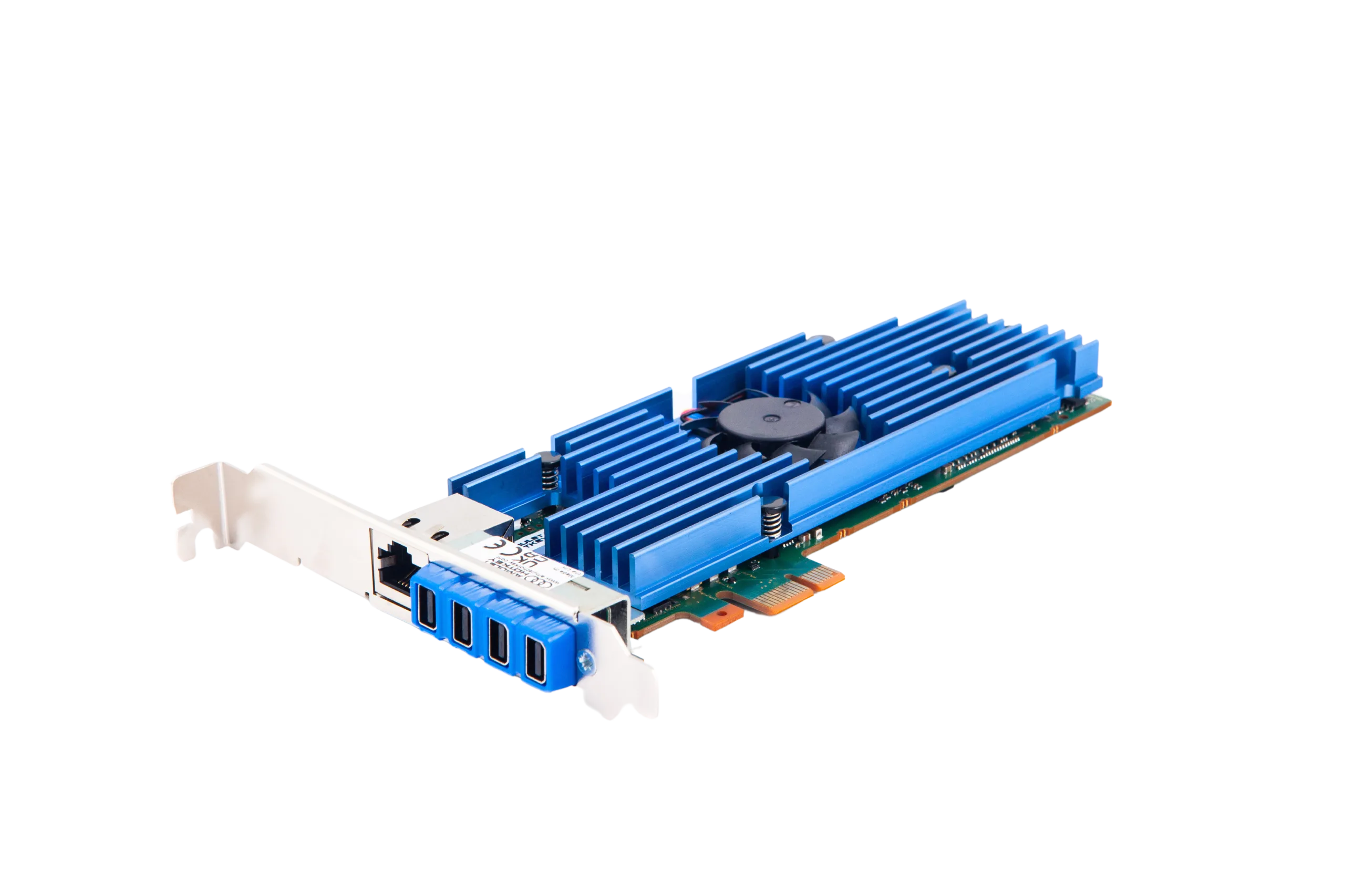

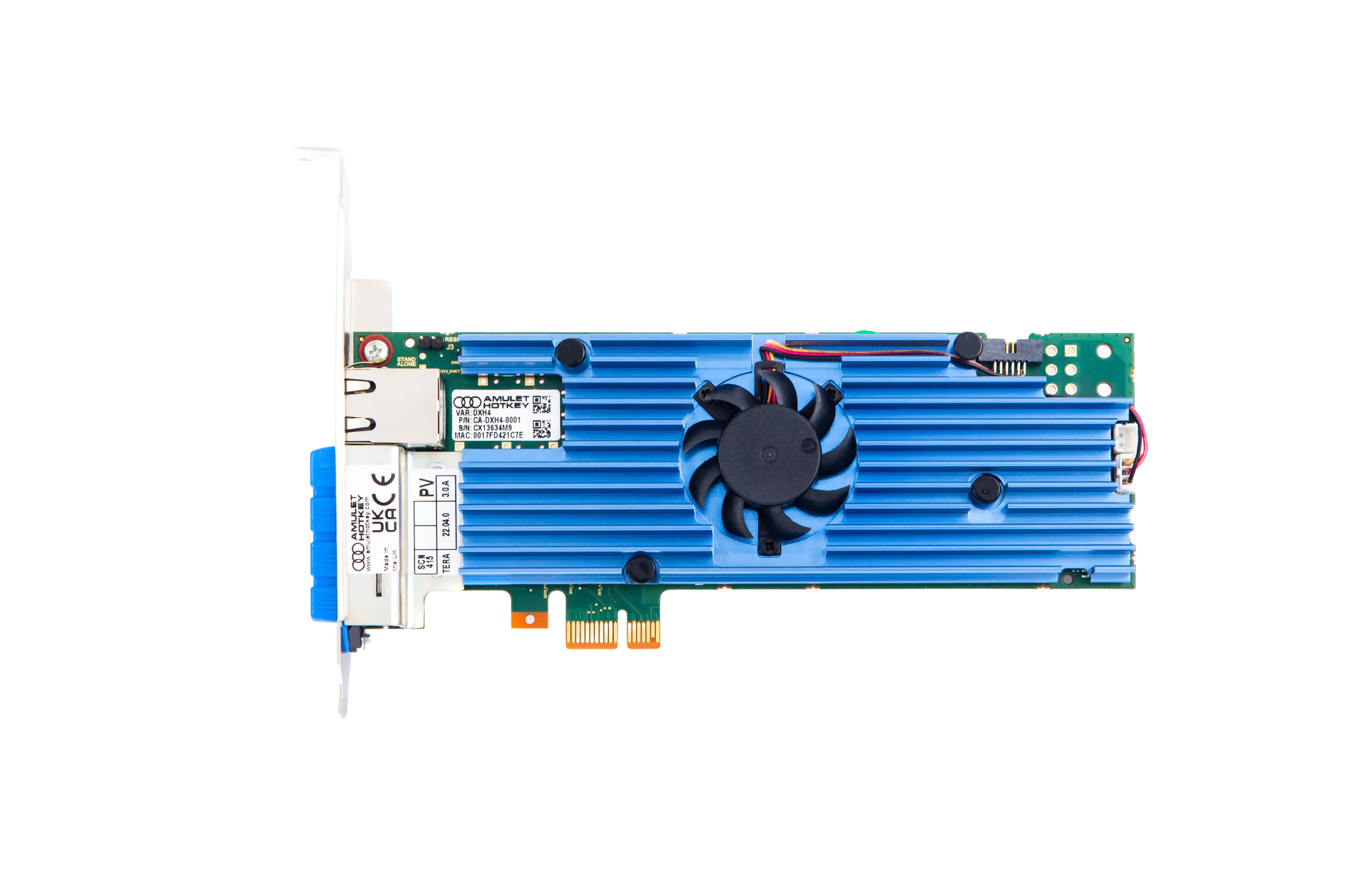

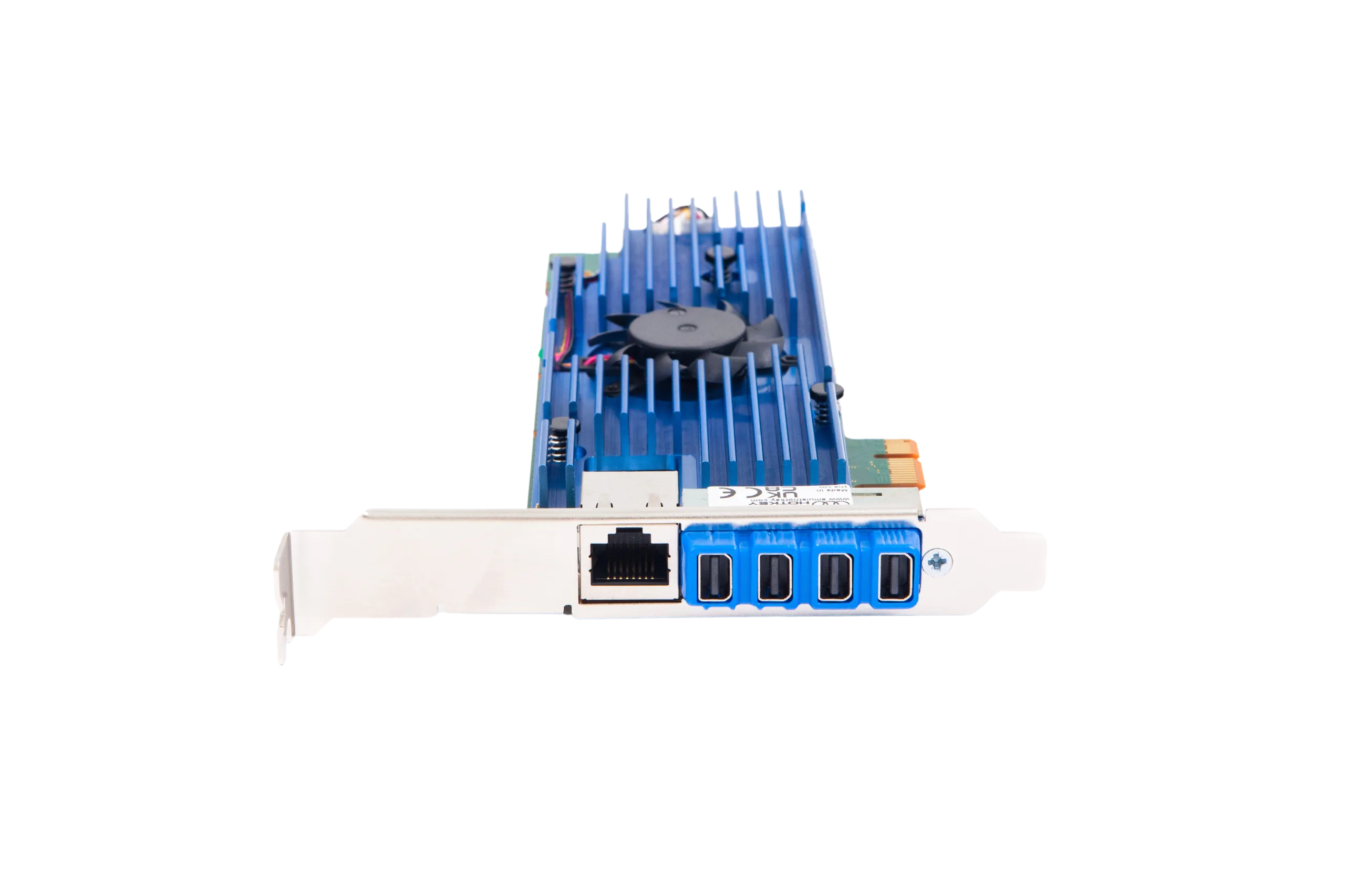

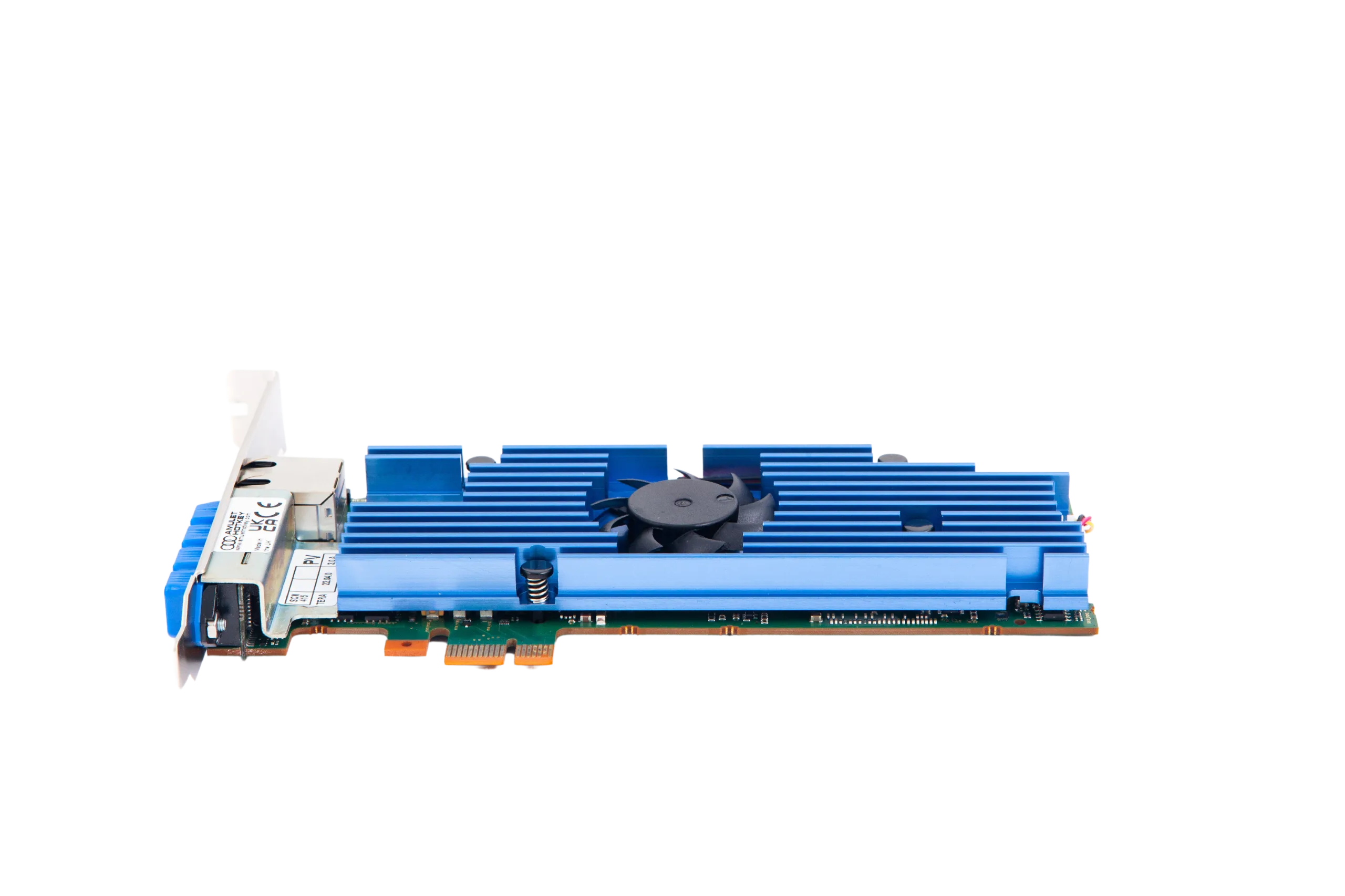

The Amulet Hotkey DXH4 is a half-height PCIe quad video head PCoIP host card based on Teradici’s TERA2240 processor. With support for quad display, the host card can be used with any GPU with digital outputs, and can fit into small PCIe slots to conserve large PCIe slots for other cards. Easy to install with either full-height or low-profile bracket fitted.
Designed for remote desktop applications that require pixel perfect video across multiple monitors
Power & Performance
Quad head video support. Display resolution up to 3840 x 2160 at 30 Hz and full duplex stereo audio
Compatible with all major operating systems and no drivers or software required. Uses the existing graphics card as the source of video data
PCoIP uses the very secure AES-256 encryption on all data and provides lossless, real-time performance free from compromises
Available with a RJ45 network port as standard, or with a network port designed to accept a copper or fiber SFP module
DXH4 Quad Display Card Specifications
Low profile, half-length, Available with full-height or low profile I/O bracket fitted Single slot, 68.9 x 167.7 mm (2.7 x 6.6 inches)
1920 x 1200 maximum (quad monitors) @ 60 Hz 3840 x 2160 maximum (dual monitors) @ 30 Hz
512MB DDR3 with ECC
Dynamic fan cooling. Fan speed adjusts automatically between 0-100%, depending on load and environmental conditions
DXH4 Single RJ45: 10/100/1000BaseT DXH4-M Single SFP module: Fiber or copper; 1 Gbit/s or 100 Mbit/s
Operating: 15° to 55° C (59° to 131° F). Refers to PC internal ambient temp Storage: -10° to 60° C (14° to 140° F)
Internal from PCIe bus – maximum 15W, typically 12W
